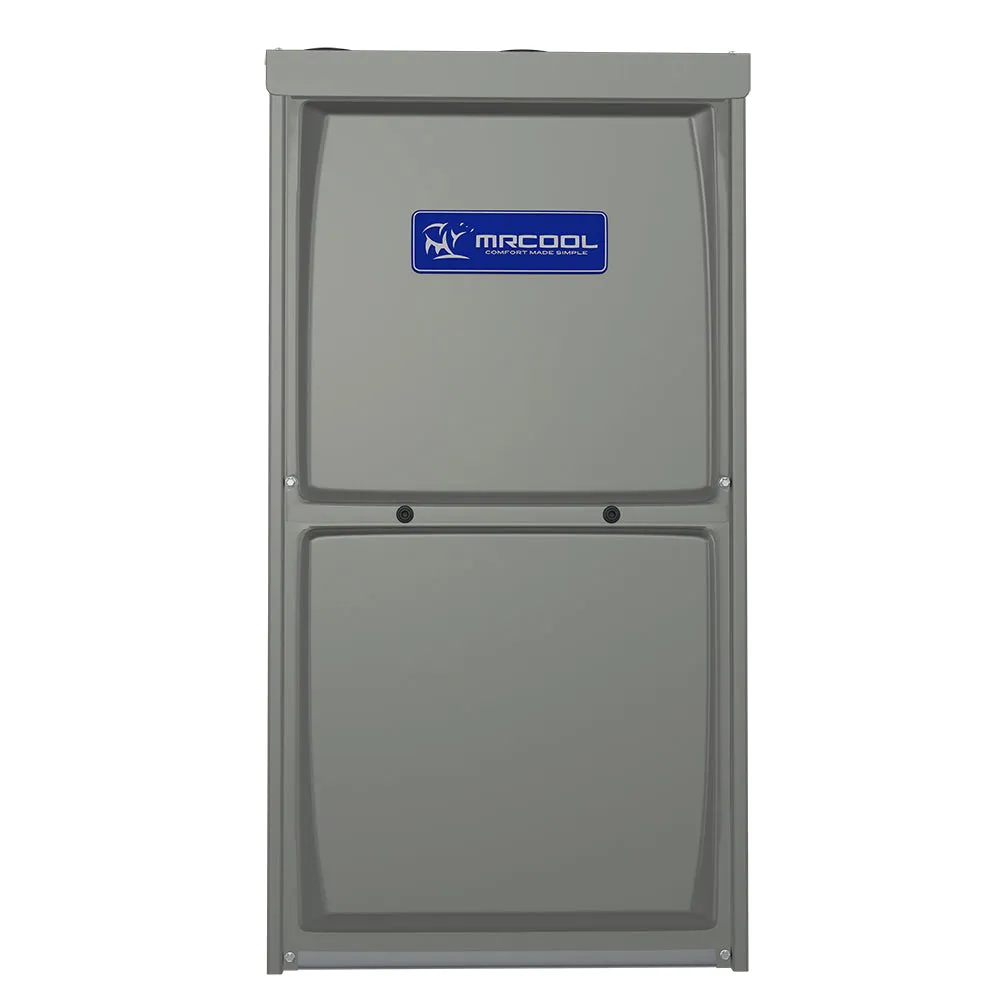

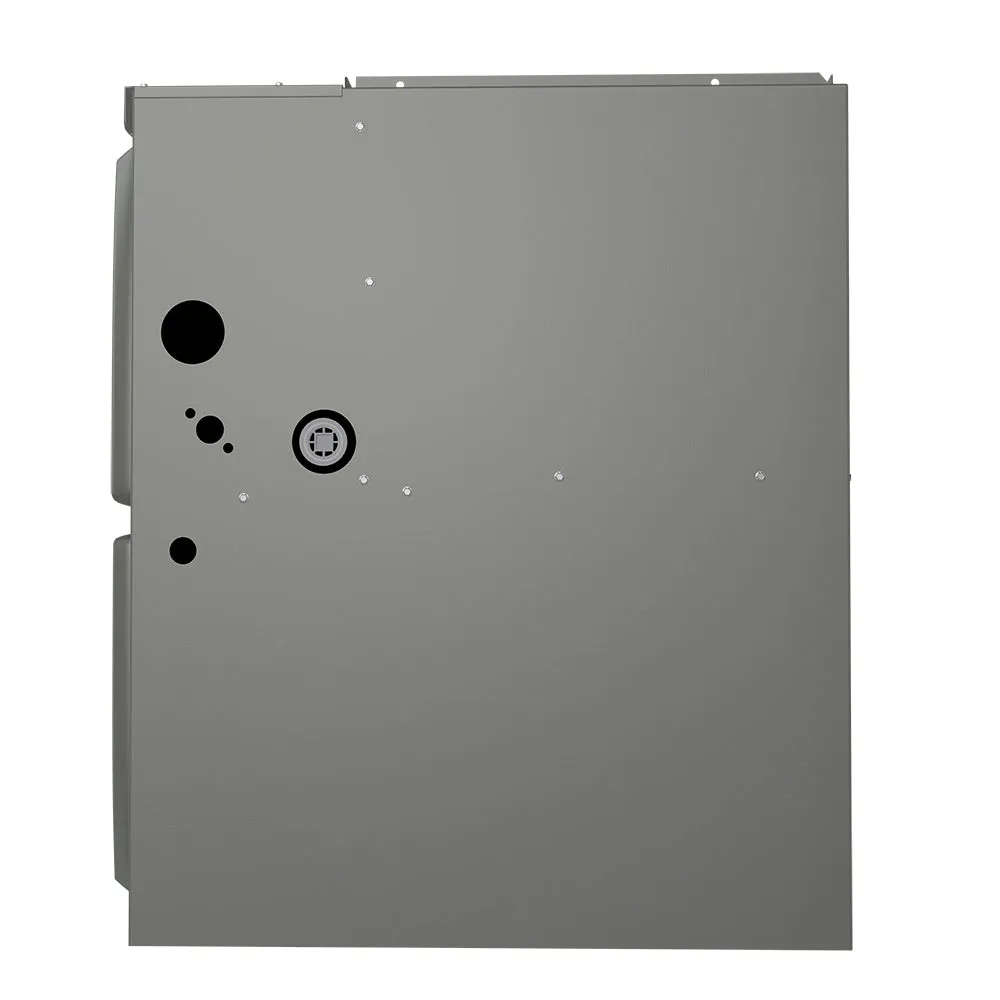

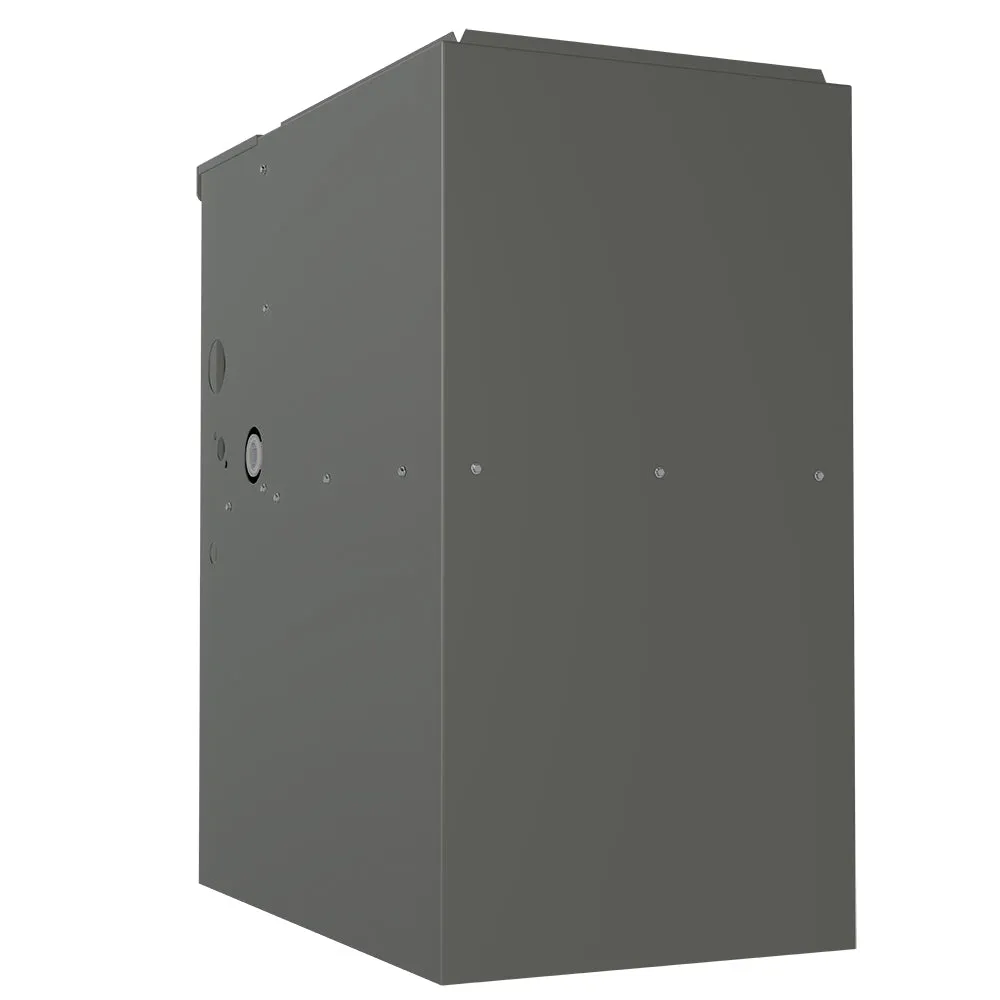

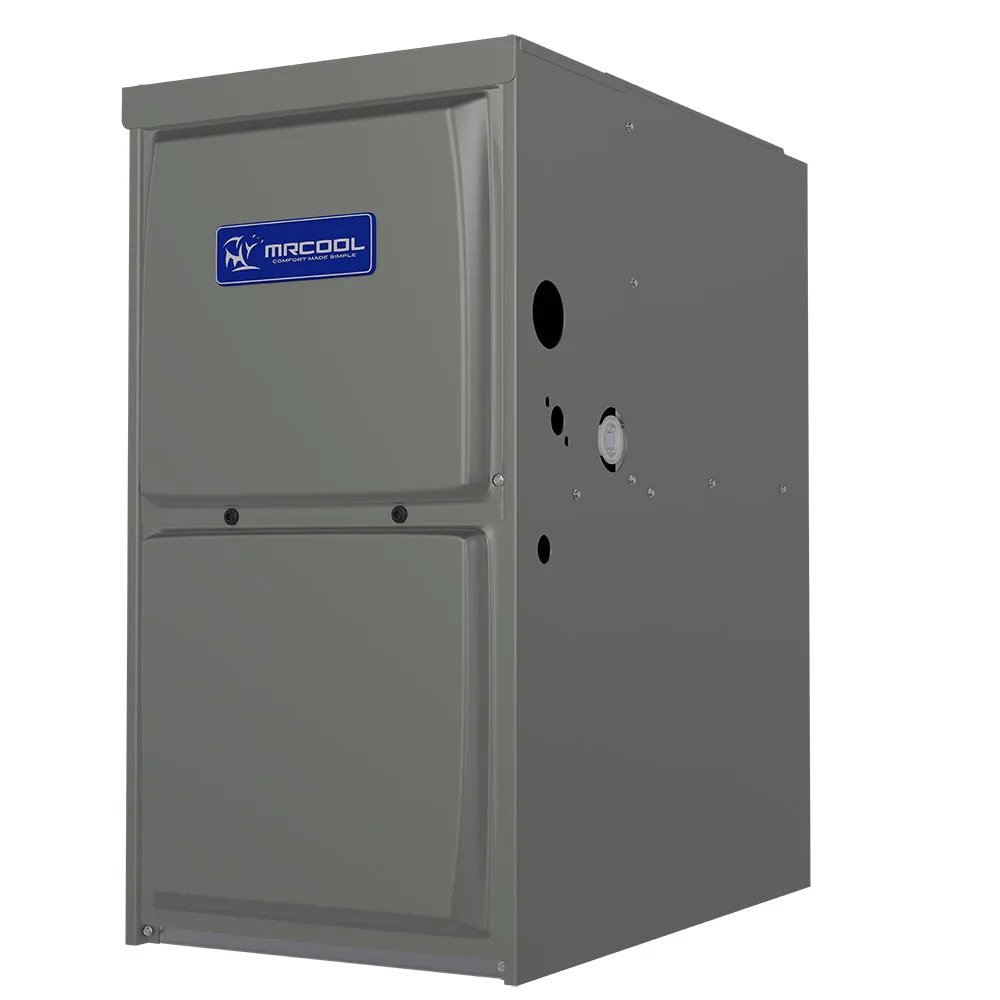

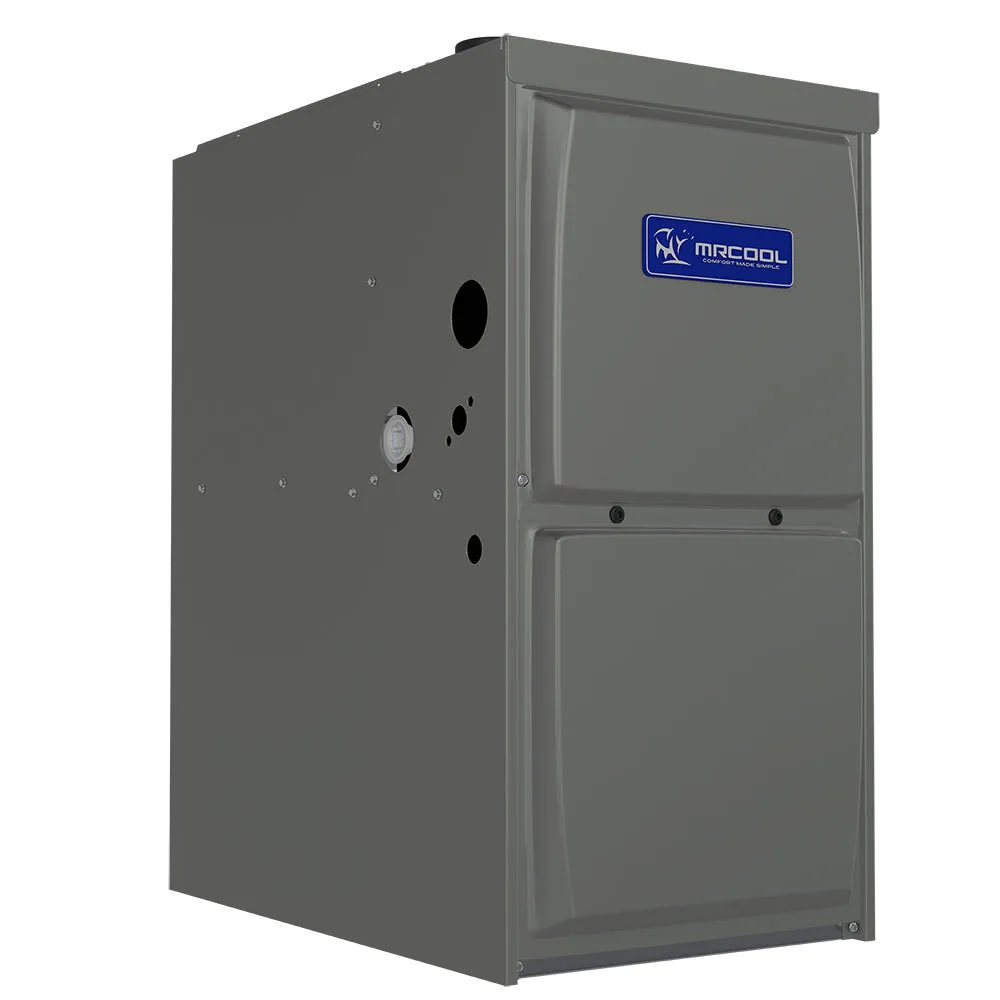

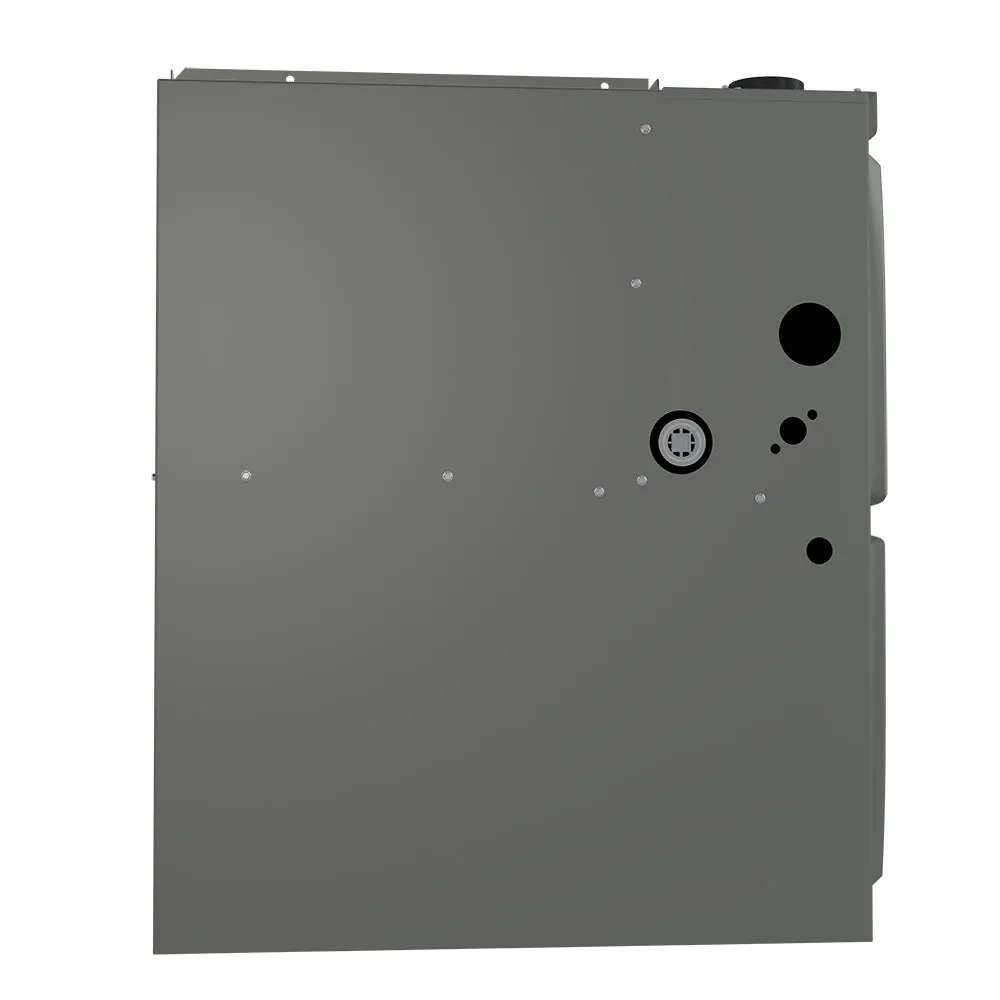

MRCOOL® Signature Series Single Stage 96% AFUE 5 Ton 110K BTU Multi-Position Multi-Speed Gas Furnace - MGM96SE110C5XA
You can count on the MRCOOL® Signature Series Single Stage 96% AFUE 5 Ton 110K BTU Multi-Position Multi-Speed Gas Furnace to provide superior performance in an energy-efficient, quiet running unit that can be installed in an upflow or horizontal configuration. Thanks to the multi-speed high efficiency blower motor, this furnace features a 96% AFUE and can offer enhanced cooling SEER ratings when applied with properly matched cooling equipment. The unit’s durable build and finish is made up of an aluminized steel primary heat exchanger with crimped non-welded construction. Other quality features include aluminized steel inshot burners for smooth ignition as well as a durable silicon nitride ignitor. In order to deliver heat quickly to your home, the furnace features a single-stage gas valve. The compact 33 inch design, left or right utility connection, and zero-step horizontal conversion make installation of this furnace quick and easy. It offers standardized widths for easy coil fit and can be easily vented with PVC pipe. It is design certified for direct and non-direct vent applications and has a removable floor base for bottom return air. You also have the option to use a LP kit to convert to liquid propane. Maintenance of the unit is easy thanks to the easily removable slide out blower design. MRCOOL® offers a lifetime heat exchanger warranty and 10-year parts warranty on this product.
Specifications:
| BRAND | MRCOOL |
| MODEL | MGM96SE110C5XA |
| SERIES | Signature Multi Position 96% AFUE Furnace |
| UNIT TYPE |
Gas Furnace |
| AFUE | 96% |
| CFM | 2000 |
| TONNAGE | 5 Ton |
| FUEL TYPE |
Gas |
| BTU INPUT |
110000 |
| BTU OUTPUT |
107200 |
| VOLTAGE | 120V |
| PHASE | 1 |
| CYCLE | 60Hz |
| MAX FUSE BREAKER |
15 |
| FULL LOAD |
10.9 |
| GAS CONNECTION SIZE |
1/2 in |
| AHRI CERTIFIED |
Yes |
| NET DEPTH |
29 in |
| NET HEIGHT |
33 in |
| NET WIDTH |
21.5 in |
| GROSS WEIGHT |
164 lbs |
